“Continous Cutting More Efficient”
CE CNC

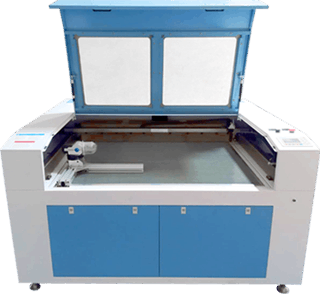

LASER CUTTING MACHINE
Co2 Laser Engraving Machine Wood, Acrylic Laser Carving Machine
SPECIFICATIONS
| MODEL/TYPE | SL1300AUD - RP |
|---|---|
| Laser Power | < 100W |
| Processing Area (mm) | 1300 x 1000 |
| Grirss Power | 2KW |
| Measurement(mm) | (LxWxH) 2000 x 1400 x 1010 |
| System OS | Windows XP/7 |
| Compatible Format | AI PLT DXF DST BMP JPG JPEG PNG |
| Weight(kg) | 330KG |
| Power Supply | 220V, 50Hz / 60Hz, 16A |
| Environmental Requirements | Temperature 10°C - 30°C Humidity (no condensation) 30 - 80% |

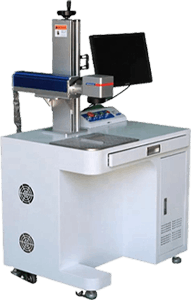

FIBER LASER
ENGRAVING MACHINE
Laser marking system for stippling metal, polymer plastics.
TECHNICAL PARAMETERS
| LASER MODULE | SL200F |
|---|---|
| Laser Power | 20 w |
| Wave Length | 1060 mm |
| Beam Quality | m2, 1.5 |
| Laser Repeat Frequency | < 100 Khz |
| Standar Marking Scope | 200 x 200 mm |
| Optional Marking Scope | 50 * 50 / 100 * 100 / 150 * 150 (mm) |
| Marking Depth | < 1.2mm |
| Marking Speed | < 12000 mm/s |
| Minimum Line Width | 0.01 mm |
| Minimum Character | 0.05 mm |
| Repeated Accuracy | ±0.01 mm |
| Consumtion Power | < 500 W |
| Power Supply | 220V/50Hz/10A |
| Cooling Mode | Air Cooling |
| Option | Retery |
